HiLook 8MP IP CCTV System sixteen cameras with audio 8TB

Description

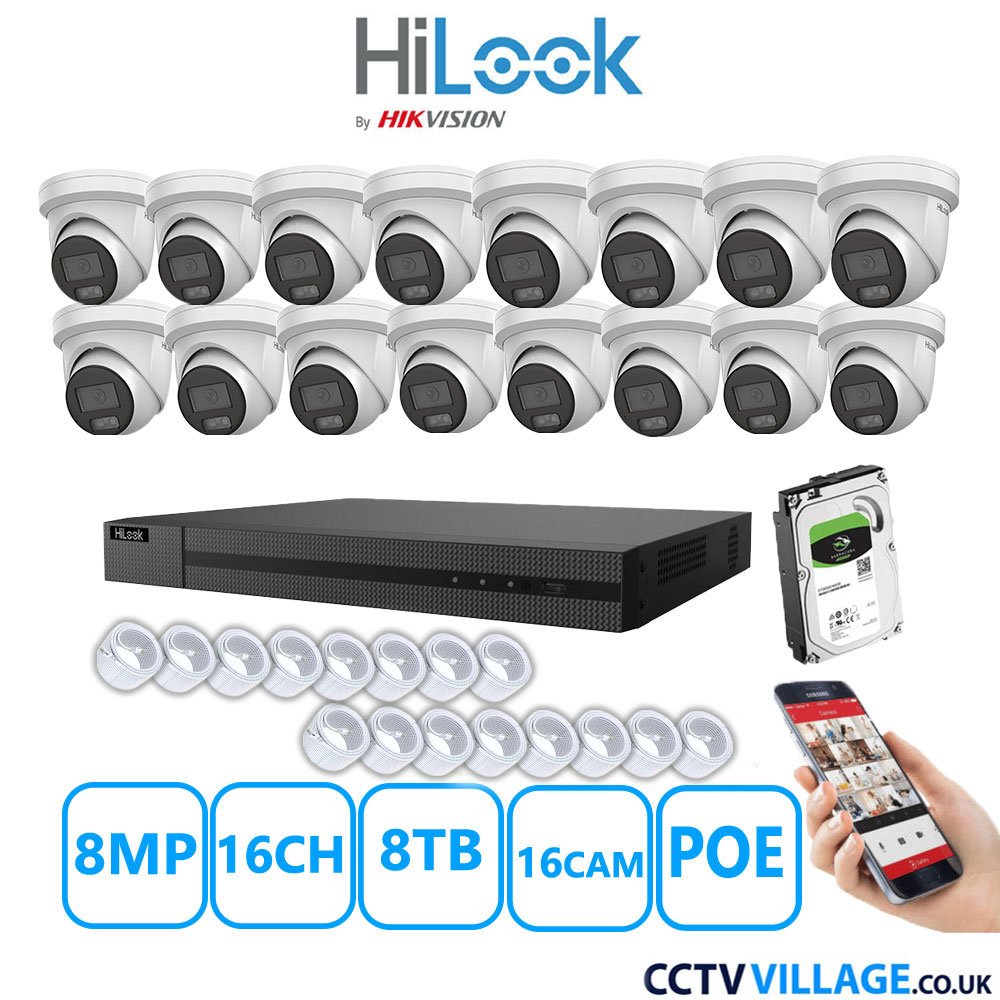

What is included in the box?

1x HiLook NVR 16 channel - (216MH-C/16P)

8TB HDD Installed Inside the NVR

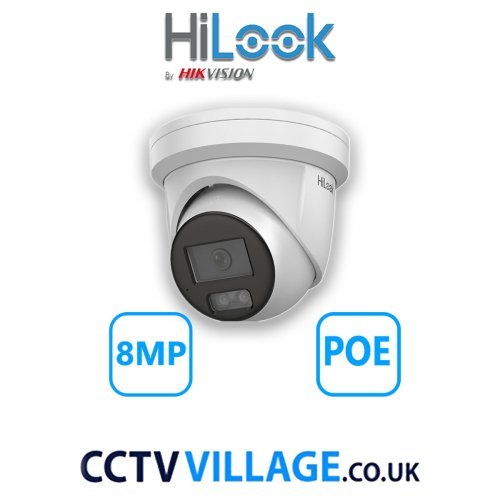

16x HiLook 8MP cameras in White (IPC-T289H-MU)

20MCables for each camera

Power supply & mouse for the NVR
-------------------------------------------------------------------------------
NVR's Technical Specifications :
Video And Audio
IP Video Input
16-ch

HDMI Output
1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output
1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Incoming Bandwidth
160 Mbps

Outgoing Bandwidth
80 Mbps

Audio Output
1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding
Decoding Format
H.265+,H.265,H.264+,H.264

Decoding Capability
4-ch@1080p

Synchronous Playback
16-ch

Recording Resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Network
Network Protocol
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Network Interface
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfacePoE
Interface
16-ch

Power
≤ 150W

Standard
IEEE 802.3 af/at

RAID
RAID Type
No

Auxiliary Interface
SATA2
2 SATA interfaces

Capacity
Up to 8TB capacity for each disk
USB Interface
2 × USB 2.0

General
Power Supply
100-240V～, 50/60Hz, 3.2A MAX

Consumption
≤ 15W

Working Temperature
-10 to +55º C (+14 to +131º F)

Working Humidity
10 to 90 %

Chassis
1U chassis
Dimension (W × D × H)
385 × 315 × 52 mm (15.2"× 12.4" × 2.0")

Weight
≤ 2.6 kg (5.7 lb)
------------------------------------------------------------------------------
Camera's Technical Specifications :
Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination

Colour:
0.0008 Lux @ (F1.0, AGC ON),0 Lux with white light

Shutter Time
1/3 s to 1/100,000 s

Day ＆ Night
24/7 colour imaging

Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Audio
Built-in mic

Lens
Lens Type
Fixed focal lens, 2.8, 4mm optional
Focal Length ＆ FOV
2.8 mm, horizontal FOV 104°, vertical FOV 55°, diagonal FOV 127°
4 mm, horizontal FOV 93°, vertical FOV 46°, diagonal FOV 112°

Lens Mount
M16
Iris Type
Fixed
Aperture
F1.0
Depth of Field
2.8 mm: 3.4 m to ∞
4 mm: 3.8 m to ∞

DORI
DORI
2.8 mm: D: 91 m, O: 36 m, R: 18 m, I: 9 m
4 mm: D: 111 m, O: 44 m, R: 22 m, I: 11 m

Illuminator
Supplement Light Type
White Light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes

Video
Main Stream
50 Hz:
20 fps (3840 × 2160)
25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
20 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264

Video Bit Rate
32 Kbps to 16 Mbps

Video Bit Rate
32 Kbps to 16 Mbps

H.264 Type
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type

Main Profile
Bit Rate Control
CBR/VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
1 fixed region for main stream and sub-stream

Audio
Audio Type
Mono sound
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate
64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering
Yes

Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP

Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

User/Host
Up to 32 users 3 user levels: administrator, operator, and user

Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client
iVMS-4200, HiLookVision Web Client, HiLookVision App
Web Browser
Plug-in required live view: IE10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 12+
Local service: Chrome 57.0+, Firefox 52.0+

Image Parameters Switch
Yes
Day/Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
130 dB
SNR
≥ 52 dB

Image Enhancement
BLC, HLC, 3D DNR

Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port

Built-in Microphone
Yes
Reset Key
Yes

Event
Basic Event
Motion detection, video tampering alarm, exception

General
Power
12 VDC ± 25%, 0.69 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity
protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.27A to 0.17 A, max: 10 W

Material

Metal
Dimension
Ø138.6mm × 115.2m (Ø5.4" × 4.5")

Package Dimension
170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")

Weight
Approx. 770 g (1.7 lb.)
With Package Weight
Approx. 1040 g (2.3 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language
English, Ukrainian
Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, FCC: 47 CFR Part 15, Subpart B

Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017

Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006

Protection
IP67: IEC 60529-2013
