HiLook 2MP system four cameras with audio 2TB

Description

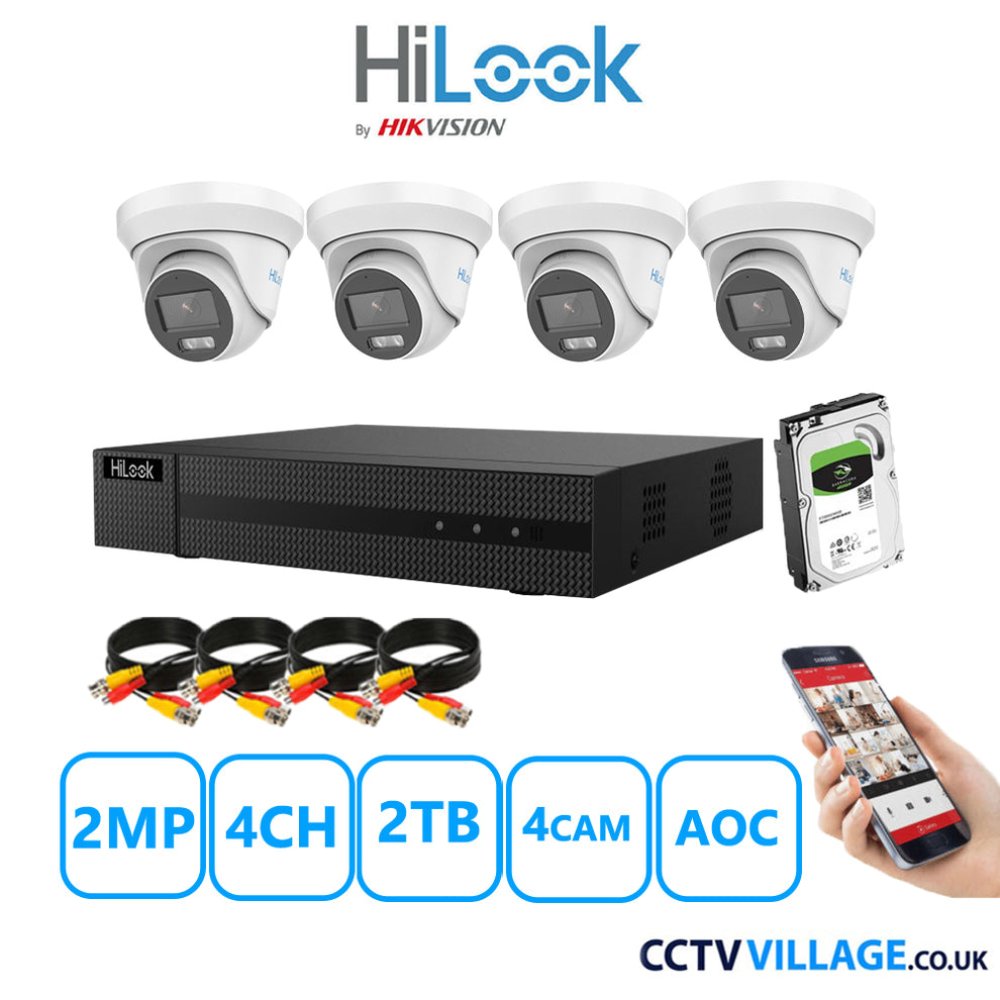

What is included in the box?
1x HiLook DVR 4 channel (DVR-204G-K1)

2TB HDD Installed Inside the DVR

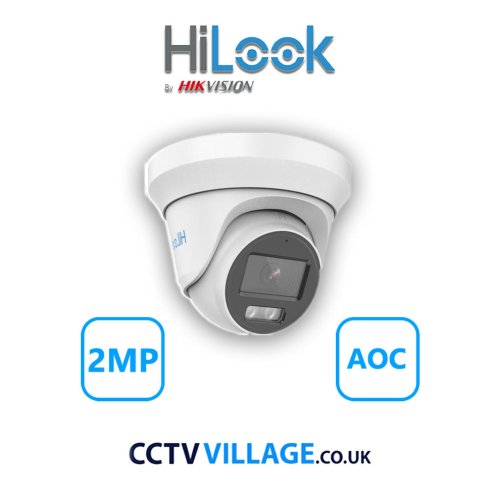

4x HiLook 2MP cameras in White (THC-T229-MS)

4x 20 Meters Cables for each camera
Camera Power Supply

Power supply & mouse for the DVR

-----------------------------------------------------------


DVR's Technical Specifications :


Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Video and Audio
IP Video Input
1-ch (up to 5-ch)

Up to 1080p resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input
4-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

CVBS Input
Support
HDTVI Input
1080p25, 1080p30, 720p25, 720p30
Synchronous playback
4-ch
AHD Input
1080p25, 1080p30, 720p25, 720p30
HDCVI Input
1080p25, 1080p30, 720p25, 720p30
Video Output Mode
HDMI/VGA simultaneous output
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)

4-ch via coaxial cable

Two-Way Audio
Reuse the first audio input
Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

For 720p stream access: 720p/WD1/4CIF/VGA/CIF

For SD stream access: WD1/4CIF/VGA/CIF

Frame Rate
Main stream:

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)

For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)

For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)

Video Bitrate
32 Kbps to 4 Mbps
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Network
Total Bandwidth
64 Mbps
Network Protocol
TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
Remote Connection
32
Network Interface
1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA
1 SATA interface
Capacity
Up to 4 TB capacity for each disk
USB Interface
Rear panel: 2 × USB 2.0
Alarm In/Out
N/A
General
Power Supply
12 VDC, 1.5 A
Consumption
≤ 16 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight
≤ 0.8 kg (without HDD, 1.8 lb.)

------------------------------------------

Camera's Technical Specifications :


Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Min. Illumination
0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Signal System
PAL/NTSC
Lens
Lens Type
2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 105°, vertical FOV: 55°, diagonal FOV: 125°

3.6 mm, horizontal FOV: 84°, vertical FOV: 45°, diagonal FOV: 99°

Lens Mount
M12
Illuminator
Supplement Light Type
White Light
Supplement Light Range
Up to 40 m
Smart Supplement Light
Yes
Image Parameters Switch
STD/HIGH-SAT/HIGHLIGHT
Image Settings
Brightness, Sharpness, Anti-banding, AGC
Frame Rate
TVI: 1080p @25 fps/30 fps

CVI: 1080p @25 fps/30 fps

AHD: 1080p @25 fps/30 fps

CVBS: PAL/NTSC

Day/Night Mode
Color
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
DWDR, BLC, HLC, Global
Noise Reduction
3D DNR/2D DNR
White Balance
Auto, Manual
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
Alarm
Solid Light Alarm (White Light)
General
Material
Metal
Power
12 VDC ± 25%, max. 3.2 W,*You are recommended to use one power adapter to supply the power for one camera.
Dimension
Ø127.9 mm × 97.8 mm (5.04" × 3.86")
Weight
Approx. 473 g (1.04 lb.)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
Communication
HIKVISION-C
Language
English
Approval
Protection
IP66
