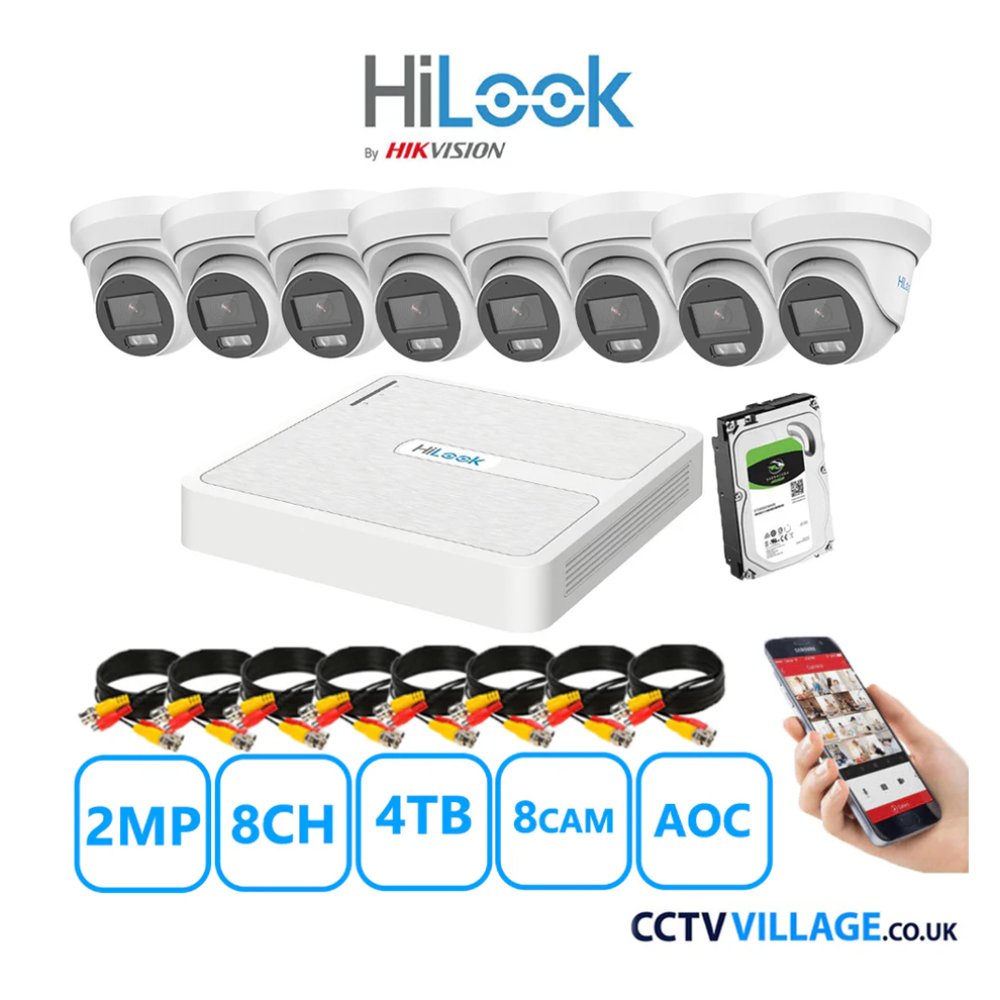

HiLook 2MP system eight cameras with audio 4TB

Description

What is included in the box?
1x HiLook DVR 8 channel (DVR-108G-K1)

4TB HDD Installed Inside the DVR

8x HiLook 2MP cameras in White (THC-T229-MS)

8x 20 Meters Cables for each camera

Camera Power Supply

Power supply & mouse for the DVR

---------------------------------------------

DVR's Technical Specifications:
Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Video And Audio
IP Video Input
2-ch (up to 10-ch)

Up to 5 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input
8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input
1080p25, 1080p30, 720p25, 720p30
AHD Input
1080p25, 1080p30, 720p25, 720p30
HDCVI Input
1080p25, 1080p30, 720p25, 720p30
CVBS Input
Support
HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode
HDMI/VGA simultaneous output
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)

8-ch via coaxial cable

Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
Reuse the first audio input
Synchronous Playback
8-ch
Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

For 720p stream access: 720p/WD1/4CIF/VGA/CIF

For SD stream access: WD1/4CIF/VGA/CIF

Frame Rate
Main stream:

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps

For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps

For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

For 1080p and 720p stream access CIF/QVGA@15 fps

For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

Video Bitrate
32 Kbps to 4 Mbps
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Network
Total Bandwidth
72 Mbps
Remote Connection
64
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
Network Interface
1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA
1 SATA interface
Capacity
Up to 4 TB capacity for each disk
USB Interface
Rear panel: 2 × USB 2.0
Alarm In/Out
N/A
General
Power Supply
12 VDC, 1.5 A
Consumption
≤ 17 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weight
≤ 1 kg (without HDD, 2.2 lb.)

---------------------------------------

Camera's Technical Specifications:

2MP ColorVu Audio Fixed Turret Camera
2MP ColorVu Audio Fixed Turret Camera
High quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm fixed focal lens
Up to 40 m white light distance for bright night imaging
High quality audio with audio over coaxial cable, built-in mic
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP66)
