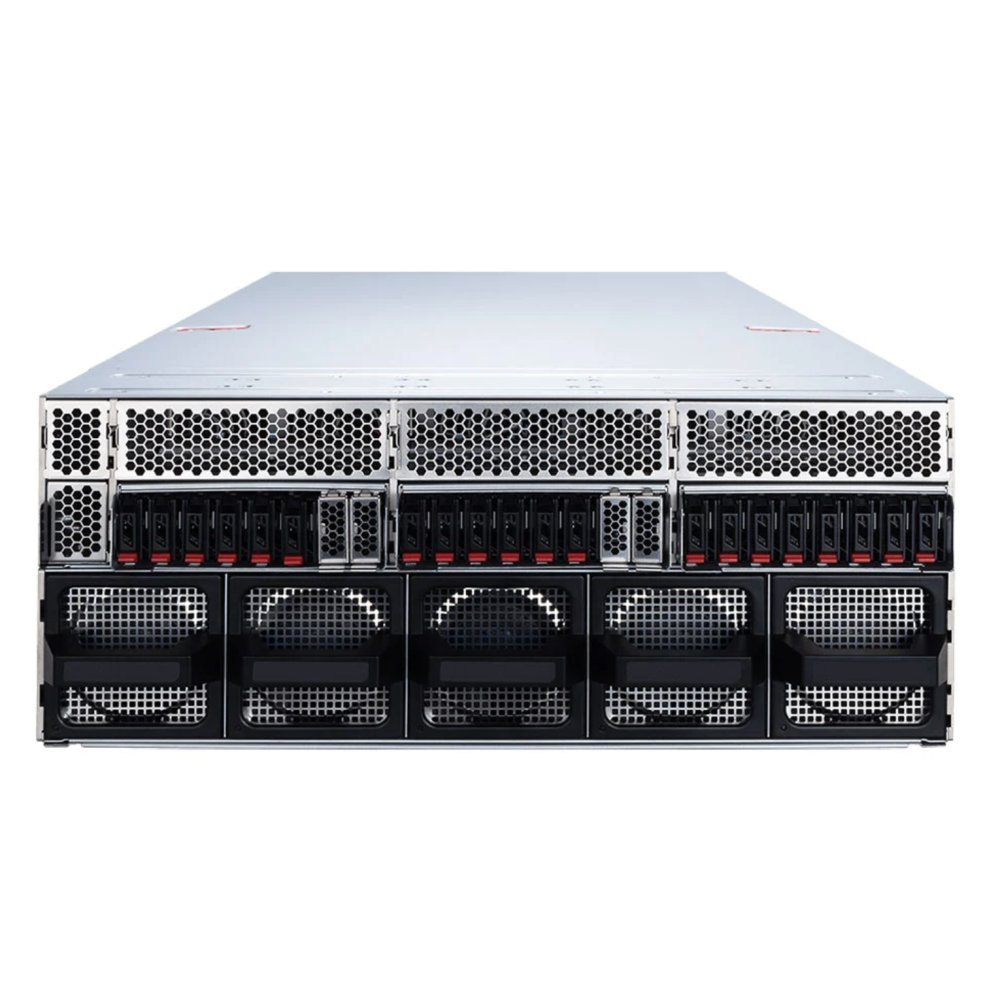

MSI CG480-S5063 Intel Xeon AI Server Barebone

Description

Product Overview
4U Barebone Server
The MSI S5063G480RAE20 is a compact 4U barebone server designed for dual Intel processors, supporting up to 20 E1.S drives, ideal for dense storage and high-performance computing setups.


Dual Intel Processor Support
This barebone supports two Intel processors, enhancing computational power for demanding applications and enterprise environments with scalable performance.


High Storage Density
Equipped with 20 E1.S drive bays, this system offers expansive storage capacity suitable for data-intensive tasks and large-scale data storage solutions.


Scalable Server Solution
Designed for modular expansion and adaptability, the MSI S5063G480RAE20 barebone server fits diverse workloads from virtualisation to big data processing.


Enterprise-Grade Reliability
Built for robustness with quality components, this server barebone is well-suited for critical mission workloads requiring consistent uptime and stable performance.

Features
• NVIDIA-Certified System.
• 4U (NVIDIA MGX™ architecture ).
• Dual Intel® Xeon® 6500/6700 series processors, TDP up to 350W.
• (32) DDR5 RDIMM, 8 channels per CPU(2DPC), up to 6400MT/s(1DPC) and 5200MT/s(2DPC).
• (20) Front hot-swap E1.S PCIe 5.0 x4 NVMe drive bays.
• (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports.
• Max (13) PCIe 5.0 x16 expansion slots, supporting up to (8) NVIDIA H200 NVL or RTX PRO 6000 Blackwell Server Edition PCIe GPU cards.
• (2) 10GBase-T Ethernet ports with Intel® X710-AT2 (NCSI supported).
• (1) 1000Base-T Dedicated Server Management port with: ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support Dual BIOS & BMC TPM2.0 on board.
• Hardware Root of Trust available as an optional feature.

Application:
• Training, Fine Tuning.
• LLM Inference.
• NVIDIA Omniverse™.
