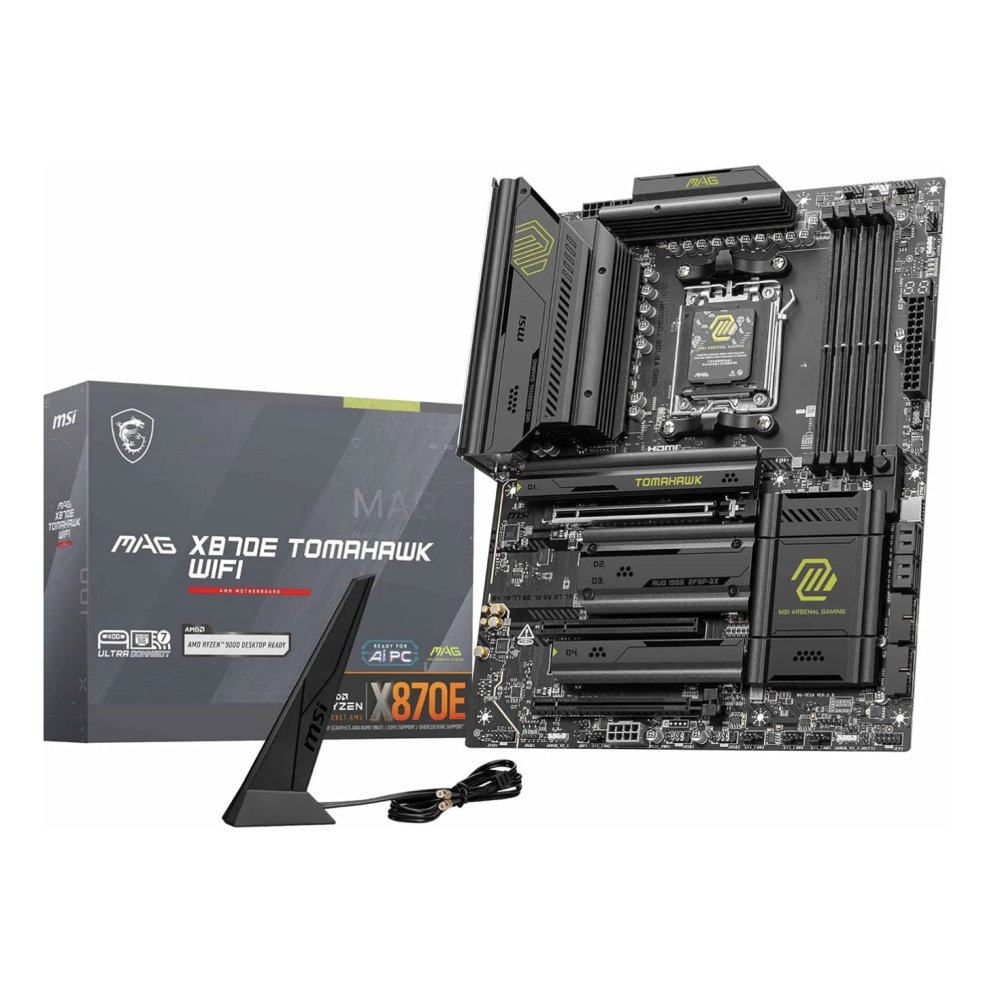

MSI MAG X870E TOMAHAWK MAX WiFi AM5 DDR5 PCIe 5.0 ATX Motherboard

Description

Product Overview
Built for Next-Gen AMD Performance
The MSI MAG X870E TOMAHAWK WIFI is designed around the AMD AM5 platform and supports Ryzen 9000, 8000, and 7000 series processors, giving it broad compatibility for high-performance builds. Its X870E chipset and ATX form factor make it a strong foundation for gaming rigs and powerful all-round systems.


Blazing-Fast Connectivity
This motherboard is packed with modern connectivity, including Wi-Fi 7, 5G LAN, USB4, and high-speed USB options across both front and rear panels. For users who want fast, stable networking and quick peripheral access, it’s built to keep bottlenecks to a minimum.


PCIe 5.0 and Expansion Ready
With PCIe 5.0 support for graphics and storage, plus multiple PCIe slots, the board is ready for next-generation GPUs and expansion hardware. It also includes four M.2 slots and four SATA ports, giving builders plenty of room for ultra-fast NVMe storage and additional drives.


DDR5 Memory Power
The board supports four DDR5 DIMM slots and up to 256GB of memory, with overclocking support and AMD EXPO compatibility for performance tuning. That makes it a strong fit for demanding gaming, streaming, content creation, and multitasking setups.


Premium Storage Speeds
Storage support is a major highlight, with two CPU-connected PCIe 5.0 M.2 slots and two chipset-connected PCIe 4.0 M.2 slots. This gives the motherboard the speed needed for modern game libraries, large media projects, and rapid load times.


High-End Audio Experience
For sound, MSI includes the Realtek ALC4080 codec with 7.1-channel audio and high-resolution playback support. That helps deliver clearer, more detailed audio for gaming, entertainment, and everyday use.


Easy-Build Design
MSI positions this board as part of its EZ DIY approach, making assembly and upgrades more builder-friendly. That focus is ideal for users who want a premium platform without a complicated installation experience.


Why It Stands Out
The MAG X870E TOMAHAWK WIFI blends premium performance, modern wireless, fast wired networking, PCIe 5.0, DDR5, and generous storage support into one gaming-focused motherboard. It’s especially appealing for anyone building a future-ready AMD system with strong upgrade potential.

Features
• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
• Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
• Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
