HiLook 8MP IP CCTV System sixteen cameras with audio 4TB

Description

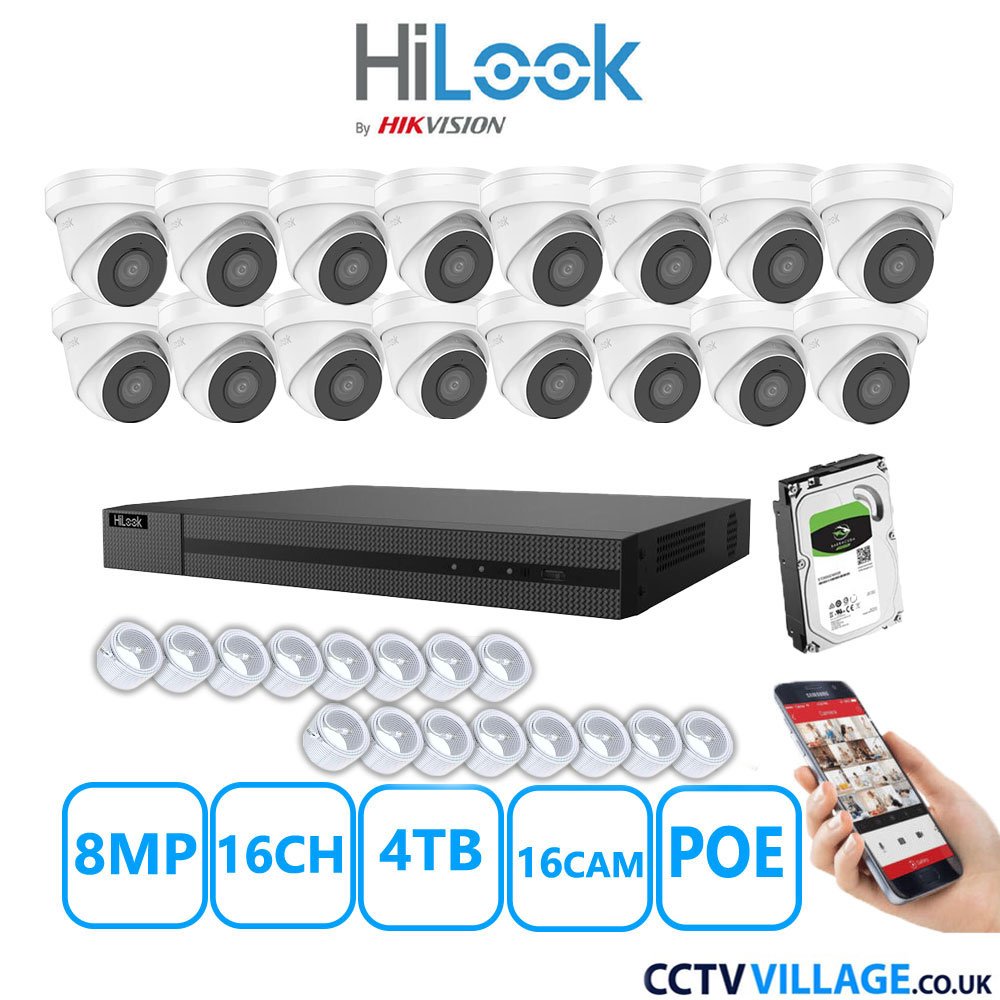

What is included in the box?

1x HiLook NVR 16 channel - (216MH-C/16P)

4TB HDD Installed Inside the NVR

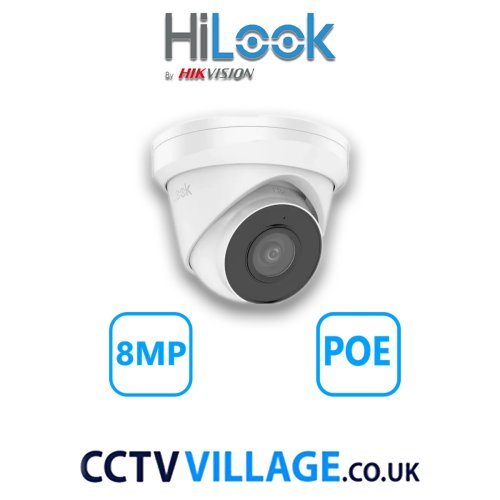

16x HiLook 8MP cameras in White (IPC-T280H-MUF)

20M Cables for each camera

Power supply & mouse for the NVR
-------------------------------------------------------------------------------
NVR's Technical Specifications :
Video And Audio
IP Video Input
16-ch

HDMI Output
1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output
1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Incoming Bandwidth
160 Mbps
Outgoing Bandwidth
80 Mbps

Audio Output
1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding
Decoding Format
H.265+,H.265,H.264+,H.264

Decoding Capability
4-ch@1080p

Synchronous Playback
16-ch

Recording Resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Network
Network Protocol
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Network Interface
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE

Interface
16-ch

Power
≤ 150W

Standard
IEEE 802.3 af/at

RAID
RAID Type
No

Auxiliary Interface
SATA
2 SATA interfaces

Capacity
Up to 8TB capacity for each disk

USB Interface
2 × USB 2.0

General
Power Supply
100-240V～, 50/60Hz, 3.2A MAX

Consumption
≤ 15W

Working Temperature
-10 to +55º C (+14 to +131º F)

Working Humidity
10 to 90 %

Chassis
1U chassis
Dimension (W × D × H)
385 × 315 × 52 mm (15.2"× 12.4" × 2.0")

Weight
≤ 2.6 kg (5.7 lb)
------------------------------------------------------------------------------
Camera's Technical Specifications :
Camera

Image Sensor
1/2.8" Progressive Scan CMOS

Max. Resolution
3840 × 2160
Min. Illumination
Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR

Shutter Time
1/3 s to 1/100,000 s

Day & Night
IR cut filter

Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Audio
Built-in mic

Lens

Lens Type
Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV
2.8 mm, horizontal FOV 108°, vertical FOV 60°, diagonal FOV 127°
4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°

Lens Mount
M12

Iris Type
Fixed

Aperture
F2.0

DORI

DORI
2.8 mm, D: 81 m, O: 32 m, R: 16 m, I: 8 m
4 mm, D: 106 m, O: 42 m, R: 21 m, I: 11 m

Illuminator

Supplement Light Type
IR

Supplement Light Range
Up to 30 m

Smart Supplement Light
Yes

IR Wavelength
850 nm

Video

Main Stream
50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression
Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG

Video Bit Rate
32 Kbps to 16 Mbps

H.264 Type
Baseline Profile/Main Profile/High Profile

H.265 Type
Main Profile

Bit Rate Control
CBR/VBR

Region of Interest (ROI)
1 fixed region for main stream

Network

Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address)

Simultaneous Live View
Up to 6 channels

API
Open Network Video Interface (Profile S), ISAPI, SDK

Protocols
TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP

User/Host
Up to 32 users 3 levels: Administrator, Operator and User

Client
iVMS-4200, HiLookVision

Web Browser
Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR)
120 dB

SNR
≥ 52 dB

Day/Night Switch
Day, Night, Auto, Schedule

Image Enhancement
BLC, HLC, 3D DNR

Image Settings
Mirror, rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Privacy Mask
4 regions of privacy mask

Interface

Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event
Motion detection, video tampering alarm, exception

Linkage
Notify surveillance center, trigger capture

General

Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Material
Metal

Dimension
Ø110 mm × 95.2 mm (Ø4.3" × 3.8")

Package Dimension
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

Weight
Approx. 320 g (0.7 lb.)

With Package Weight
Approx. 530 g (1.2 lb.)

Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language
English, Ukrainian

General Function
Anti-flicker, heartbeat, password protection, password reset via email

Approval

EMC
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015)

Safety
CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017)

Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection
IP67 (IEC 60529-2013)
